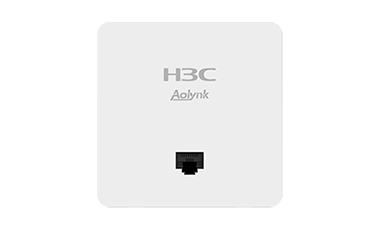

H3C Aolynk UAP612MG-AX30 is a Wi-Fi 6 (802.11ax) ultra-thin Wall-Plate AP product developed by New H3C Technologies Co., Ltd. (H3C). The AP adopts a dual-radio and four-stream design, and the maximum access rate is 2976Mbps. It has compact appearance, 7.9mm ultra-thin design (wall outside thickness), four-color shells, perfect fitting decoration style, simple installation, can be installed on the 86mm box, does not destroy the original decoration.
UAP612MG-AX30 is suitable for school dormitories, hospital wards, hotel rooms, villa rooms etc, solves the problem of poor signal quality in the traditional AP layout mode in these scenes, and greatly reduces the installation cost and the operation cost brought by the implementation.
UAP612MG-AX30 provides flexible management mode, which is suitable for different scenarios:
Cloud management mode: With cloud remote management, monitoring, cloud operation and maintenance, network optimization and other industry-leading capabilities. Cloud management mode is the preferred management mode of this device which is suitable for networking requirements of various scales.
Local web management mode: Supports Uweb management of Aolynk UR gateway. This mode applies to local web management.
* Note: For the corresponding management relationship with the gateway, refer to the release notes.
Product Advantages
Standard 86mm panel size
UAP612MG-AX30 adopts the standard 86mm×86mm panel size, which can completely reuse the user's existing 86mm panel cassette. When installing, it is convenient to replace the original panel with UAP612MG-AX30 which adopts 7.9mm ultra-thin design (wall outside thickness).
Support OFDMA technology
Supports OFDMA (Orthogonal Frequency Division Multiple Access) technology. The AP can subdivide wireless bandwidth and use different subcarriers to transmit data to multiple terminals simultaneously at the same time, reducing the delay caused by air interface resource conflicts and backoff in traditional protocols among multiple users, and improving the user experience of low-latency applications such as voice and video in multi-user scenarios.
Support Spatial Reuse technology
Supports SR (Spatial Reuse) technology and BSS Coloring coloring mechanism. By identifying the color of the message at the link layer to control the terminal to adjust the transmission power, it enhances the channel reuse capability in high-density deployments, alleviates the problem of co-channel interference during multi-user usage, and significantly improves the utilization rate of spectrum resources.
Support TWT technology
Supports TWT (Target Wake Time) technology, allowing the AP to uniformly schedule the wake-up and sleep of terminals. This not only reduces conflicts among terminals but also reduces unnecessary wake-ups of terminals, achieving the purpose of energy conservation.
Plug and play
The UAP612MG-AX30 supports plug and play. When connected to cloud platform or Aolynk UR gateways, UAP612MG-AX30 provides wireless services after powering on, making it easy to start and expand.
Support Aolynk UR gateway management
UAP612MG-AX30 can be managed by the Aolynk UR gateways. It supports various management functions, such as wireless service configuration, RF configuration, firmware update, VLAN modification, and reset.
Support self-organizing network
The self-organizing network feature include fast deployment, fast configure, fast tuning, fats troubleshooting, and fast cloud access. It supports automatic discovery among devices, automatic establishment of topology and management, plug and play of new devices, automatic management, and automatic synchronization of configuration. The self-organizing network feature greatly simplifies user deployment and configuration in small and micro scenarios, improves user experience, provides users with better O&M through edge computing, reduces user costs.
Highly reliability
Highly Reliability is the foundation of good network. UAP612MG-AX30 supports customized network link detection and a variety of network analysis tools, including a variety of hang detection and fault detection, so that you can easily find network problems. At the same time, it supports multiple fault recovery mechanisms to ensure stable network operation.
Aolynk Cloud network management platform
With the Aolynk Cloud network management platform, enterprises can enjoy professional network management and operation and maintenance services without having to purchase professional management servers and software, which greatly reduces the cost of network management for enterprise users and improves the network operation and maintenance management experience.
You can remotely log in to the web of device through the Aolynk Cloud network management platform for function configuration and remote diagnosis.
